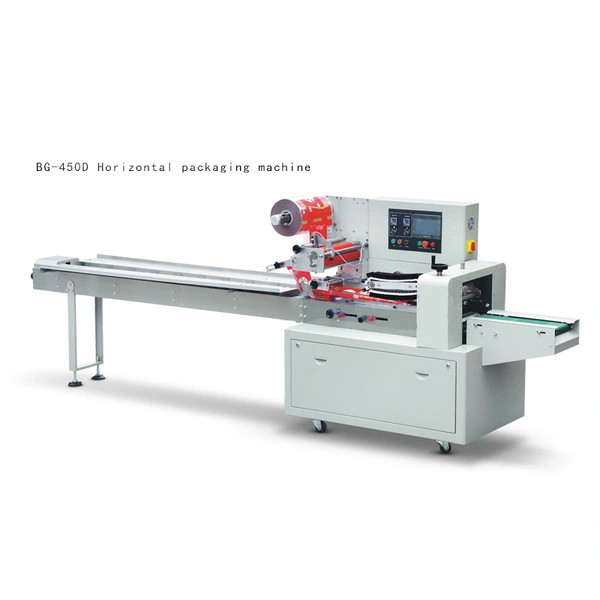

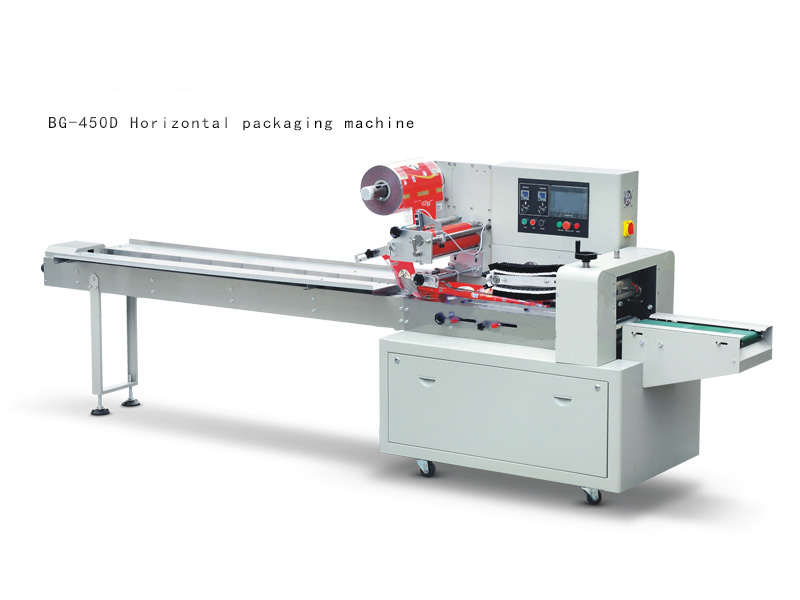

Technical specifications
Film width: Max.340mm
Bag length:
Double knives: 65-190mm/90-220mm
Single knives: 120-280mm/150-330mm
Products height: 1-60mm
Film roll diameter: max.320mm
Packing speed: 40-230bags/min
Power specification: 110V/220V/380V 50/60HZ 2.6KW
Machine size : (L) 4011* (W) 770 * (H) 1400 mm
Machine weight: 450KG
(1) Main performance and structural features
1. Double frequency converter control, the bag length is set and cut, no need to adjust the empty walk, one step in place, save time and film.
2. Human machine interface, parameter setting is convenient and fast.
3. Fault self diagnosis function, fault display at a glance.
4. High sensitivity photoelectric eye color mark tracking, digital input sealing position, make the sealing position more accurate.
5. Temperature independent PID control, better suitable for all kinds of packaging materials.
6. Reciprocating end sealing mechanism, more firm sealing, no loss of sealing die cutter.
7. The end sealing angle device makes the bag shape more beautiful and improves the product grade.
8. Positioning stop function, no knife sticking, no waste of coating.
9. Simple transmission system, more reliable work and more convenient maintenance.
10. All the control is realized by software, which is convenient for function adjustment and technology upgrade and never lag behind.
(2) Scope of application
Suitable for biscuits, rice noodles, snow cakes, bread, instant noodles, rice noodles, daily necessities, paper towels, sanitary napkins, industrial parts, cartons or pallets, etc.
